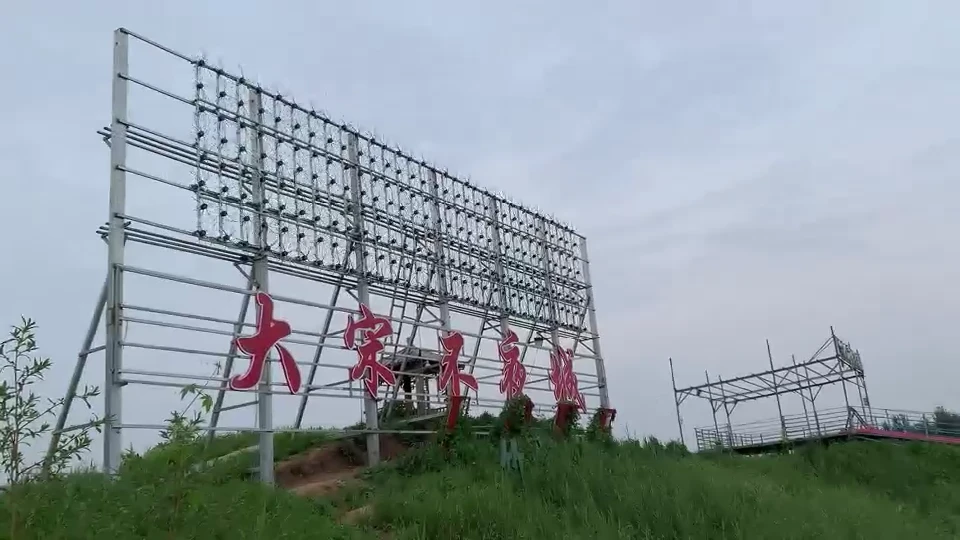

On the grand stage of China’s night tourism revolution, a new landmark has emerged in Bazhou: a monumental 32×8 outdoor waterproof holographic video wall, stretching 18.15 meters wide and 4.71 meters tall. Composed of 256 IPX6-rated 80cm holographic fans seamlessly spliced together, this installation is not merely a display—it is an immersive visual gateway into the history, legends, and artistic soul of an ancient city. This case study explores the technology, installation, and stunning visual impact of what is likely the largest continuously operating outdoor holographic screen of its kind.
The Vision: Turning Night Tourism into a Cinematic Heritage Experience
Bazhou, with its deep historical roots, sought to move beyond static lighting and traditional projection mapping. The goal was to create a dynamic, all-weather, ultra-high-definition outdoor screen that could:
- Narrate local legends with cinematic depth and emotional resonance.
- Withstand outdoor conditions (rain, dust, temperature swings) year after year.
- Deliver a seamless, glasses-free 3D experience visible from wide viewing angles across a public plaza.
- Scale to monumental size while maintaining 4K+ image quality at close range.
The answer was a 32×8 array of our A80 IPX6 waterproof 80cm holographic fans—a system that transforms an entire building facade into a living, breathing holographic canvas.

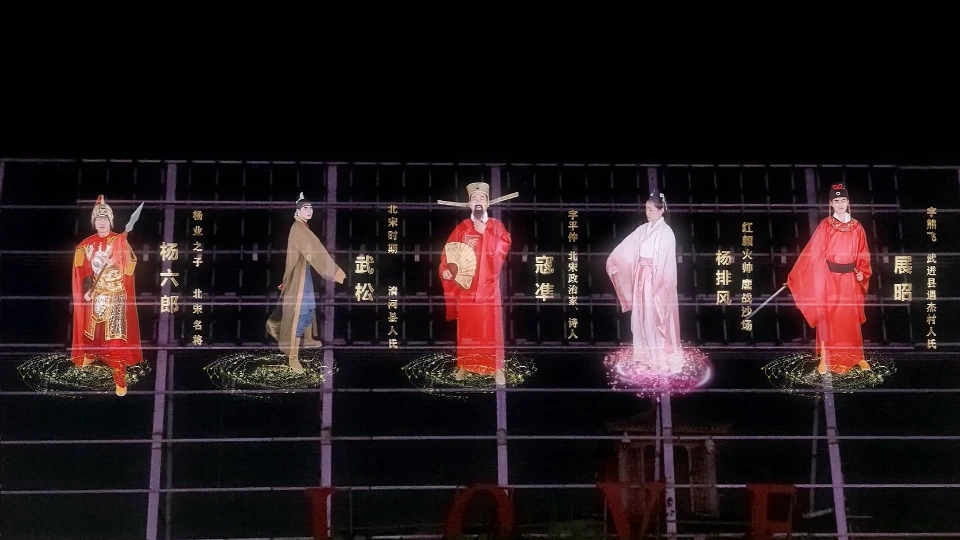

The Solution: A 32×8 Seamless Holographic Video Wall
256 Fans, One Flawless Canvas
The installation uses 256 units of the AIHOLO A80 80cm IPX6 waterproof holographic fan, arranged in a precise 32-column by 8-row grid. Each fan offers 2048×896 resolution with a P1.719 mm micro-pixel pitch, and our patented zero-gap splicing technology eliminates any visible shadows, gaps, or black lines between units. The result is a single, continuous, ultra-high-definition 3D canvas measuring 18.15m (W) × 4.71m (H)—large enough to depict full-scale historical figures, sweeping battle scenes, and immersive cultural tableaux.
H3: Total Resolution: 65,536 × 7,168 Pixels (4K+ Aggregated)
The aggregate resolution of the wall is staggering: 65,536 horizontal × 7,168 vertical pixels, yielding a level of detail that remains sharp and grain-free even when viewed from just a few meters away. This is critical for public spaces where visitors of all ages gather close to the display.
IPX6 All-Weather Reliability
Each fan carries an IPX6 waterproof rating, meaning it is fully protected against powerful water jets and heavy rain. The 100% aluminum alloy construction provides superior heat dissipation and long-term durability, ensuring flawless operation through Bazhou’s humid summers, rainy seasons, and winter chill.
2500 Nits Sunlight + Night Visibility
With adjustable brightness up to 2500 nits, the display remains vivid and clear even under direct sunlight, yet can be dialed down for comfortable nighttime viewing. This dual-mode capability is essential for cultural tourism sites that operate continuously from afternoon through evening.
Smart Cloud Management & Content Scheduling
All 256 fans are managed via our centralized cloud platform, allowing the operations team to:
- Schedule content to change with seasons, festivals, or special events.
- Update animations remotely without physical access.
- Monitor system health and receive alerts for any anomalies.
Technical Specifications of the 32×8 Holographic Wall
| Specification | Detail |
|---|---|
| Array Configuration | 32 columns × 8 rows |
| Total Fans | 256 units |
| Fan Model | A80 80cm IPX6 Waterproof Holographic Fan |
| Total Display Width | 18.15 m |
| Total Display Height | 4.71 m |
| Resolution per Fan | 2048 × 896 pixels |
| Total System Resolution | 65,536 × 7,168 pixels (4K+ aggregated) |
| Pixel Pitch | P1.719 mm |
| Brightness | 2100-2500 Nits (adjustable) |
| Waterproof Rating | IPX6 (Powerful water jet protection) |
| Viewing Angle | 170° |
| Total Power Consumption | ~12.3 kW |
| Control | Centralized cloud platform |
| Material | 100% Aerospace-Grade Aluminum Alloy |
Main Advantages of the 32×8 Waterproof Holographic Wall
- World-Leading Scale: At 18.15m wide and 4.71m tall, it is one of the largest continuously operating outdoor holographic displays built to date.
- Seamless Splicing: Zero visible gaps or shadows across 256 units, creating a unified visual canvas for cinematic content.
- All-Weather Reliability: IPX6 rating and aluminum construction ensure year-round operation in rain, dust, and temperature extremes.
- Crowd-Friendly Brightness: 2500 nits of sun-resistant output with smooth dimming for evening performances.
- **Content-Agnostic: Works with remote updates, live HDMI feeds, or automated playlists—no proprietary lock-in.
- Energy Efficient: Consumes only ~48W per fan, making the total 12.3 kW surprisingly modest for a display of this size.
Custom Solution & Support for Large-Scale Cultural Projects
For the Bazhou installation, AIHOLO provided:
- Turnkey Engineering: Custom mounting frames, power distribution, and data synchronization for 256 fans.
- Content Creation Support: Our team collaborated with cultural historians to develop 3D animations of local legends, festivals, and natural scenery.
- Installation Supervision: On‑site guidance to ensure perfect alignment and calibration across the vast array.
- Ongoing Remote Monitoring: Cloud‑based health tracking and automated alerts for proactive maintenance.
Product Details
The building block of this installation is the A80 80cm IPX6 Waterproof Holographic Fan. Each unit features:
- 2048×896 UHD resolution with P1.719 micro‑pitch.
- IPX6 waterproof rating for direct outdoor exposure.
- 100% aluminum alloy for heat dissipation and long life.
- Cloud‑ready synchronization for seamless multi‑unit splicing.
Frequently Asked Questions (FAQs)
Q1: How long did it take to install the 256-fan array?
A: The complete installation, including mounting, wiring, and calibration, was completed in approximately 5 days by a team of eight technicians. The modular, tool‑free design of each fan greatly accelerated the process.
Q2: Can the display be seen clearly from the sides?
A: Yes. Each fan has a 170° viewing angle, and the sheer width of the wall ensures excellent visibility from almost any position in the plaza.
Q3: How is the content synchronized across 256 fans?
A: Our cloud-based synchronization engine distributes content frames to each fan with sub‑millisecond precision, ensuring perfect alignment across the entire array.
Q4: What happens if one fan malfunctions in the middle of a show?
A: The system is designed for graceful degradation. The remaining fans continue to play, and the cloud platform immediately alerts the operations team to the specific unit requiring service.
Q5: Can the display be expanded further?
A: Absolutely. The modular architecture supports adding additional rows or columns without replacing existing hardware.
